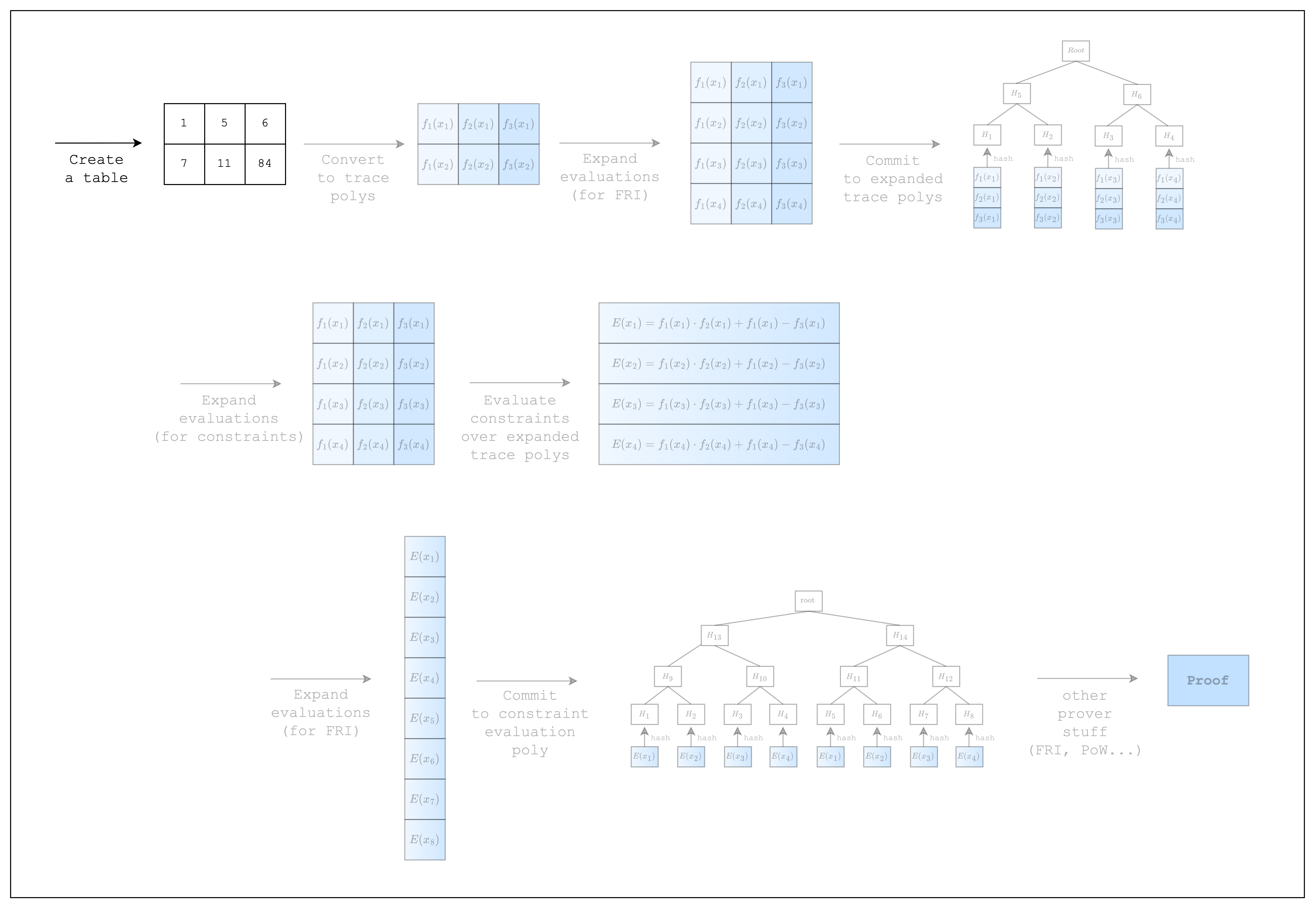

Figure 1: Prover workflow: Create a table

In order to write a proof, we first need to create a table of rows and columns. This is no different than writing integers to an Excel spreadsheet as we can see in Figure 2.

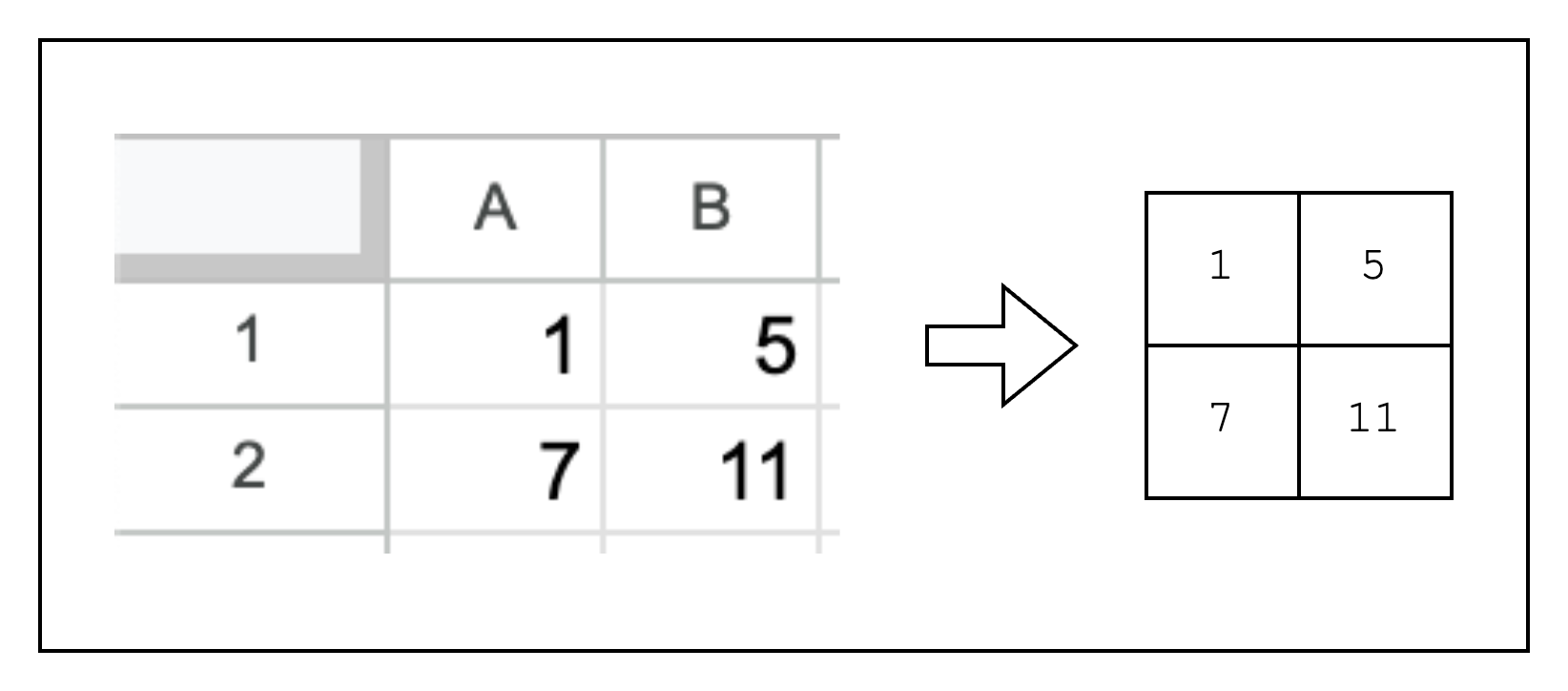

Figure 2: From spreadsheet to table

But there is a slight caveat to consider when creating the table. S-two implements SIMD operations to speed up the prover in the CPU, but this requires providing the table cells in chunks of 16 rows. Simply put, this is because S-two supports 16 lanes of 32-bit integers, which means that the same instruction can be run simultaneously for 16 different data. Alas, for our table, we will need to create 14 dummy rows to make the total number of rows equal to 16, as shown in Figure 3. For the sake of simplicity, however, we will omit the dummy rows in the diagrams of the following sections.

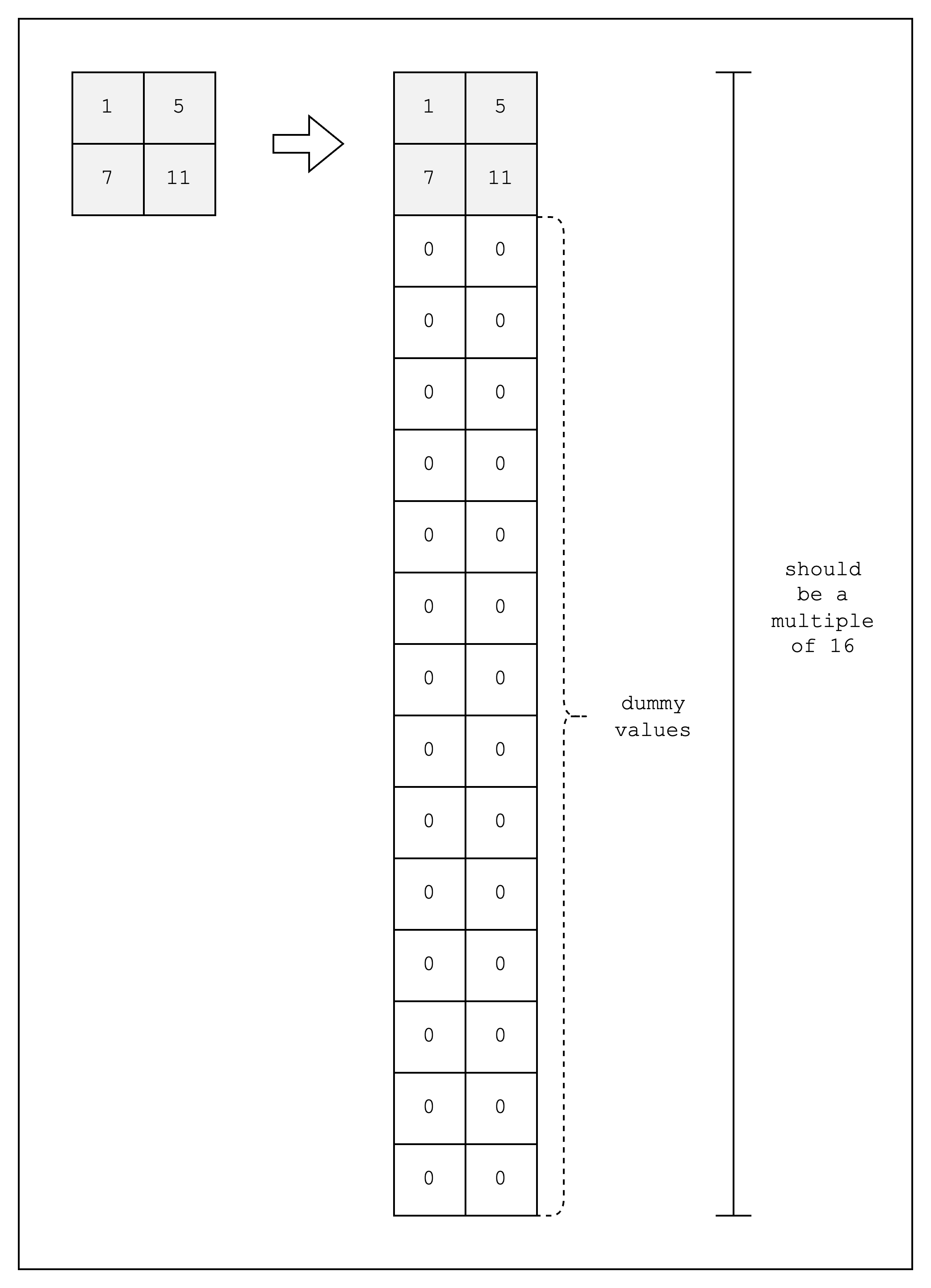

Figure 3: Creating a table with 16 rows

Given all that, let’s create this table using S-two.
use stwo_prover::core::{
    backend::{
        simd::{column::BaseColumn, m31::N_LANES},
        Column,
    },
    fields::m31::M31,
};

fn main() {
    let num_rows = N_LANES;

    let mut col_1 = BaseColumn::zeros(num_rows as usize);
    col_1.set(0, M31::from(1));
    col_1.set(1, M31::from(7));

    let mut col_2 = BaseColumn::zeros(num_rows as usize);
    col_2.set(0, M31::from(5));
    col_2.set(1, M31::from(11));
}
As mentioned above, we instantiate the num_rows of our table as N_LANES=16 to accommodate SIMD operations. Then we create a BaseColumn of N_LANES=16 rows for each column and populate the first two rows with our values and the rest with dummy values. Note that the values in the BaseColumn need to be of type M31, which refers to the Mersenne-31 prime field that S-two uses. This means that the integers in the table must be in the range [0,231−1][0, 2^{31}-1].
