This is an informal overview of Cairo. For a more formal explanation, please refer to the original Cairo paper.
Let’s start by understanding how Cairo works. Essentially, Cairo is a Turing-complete CPU architecture specifically designed to enable efficient proofs of execution using STARKs. In particular, Cairo uses a read-only memory model instead of the more common read-write memory model and does not use any general-purpose registers.

​
Non-Deterministic Read-Only Memory

A read-only memory model is one where each address in memory can have only a single value throughout the program’s execution. This contrasts with the more common read-write memory model, where an address can have multiple values at different points during execution. The memory is also non-deterministic: the prover provides the values of the memory cells as witness values, and they do not need further constraints beyond ensuring that each address has a single value throughout the program’s execution.

​
Registers

In physical CPUs, accessing memory is expensive compared to accessing registers due to physical proximity. This is why instructions typically operate over registers rather than directly over memory cells. In Cairo, accessing memory and registers incur the same cost, so Cairo instructions operate directly over memory cells. Thus, the three registers used in Cairo do not store instructions or operand values like in physical CPUs, but rather pointers to the memory cells where the instructions and operands are stored:
  • pc is the program counter, which points to the current Cairo instruction
  • ap is the allocation pointer, which points to the current available memory address
  • fp is the frame pointer, which points to the current frame in the “call stack”

​
Cairo Instructions

Let’s now see what a Cairo instruction looks like.

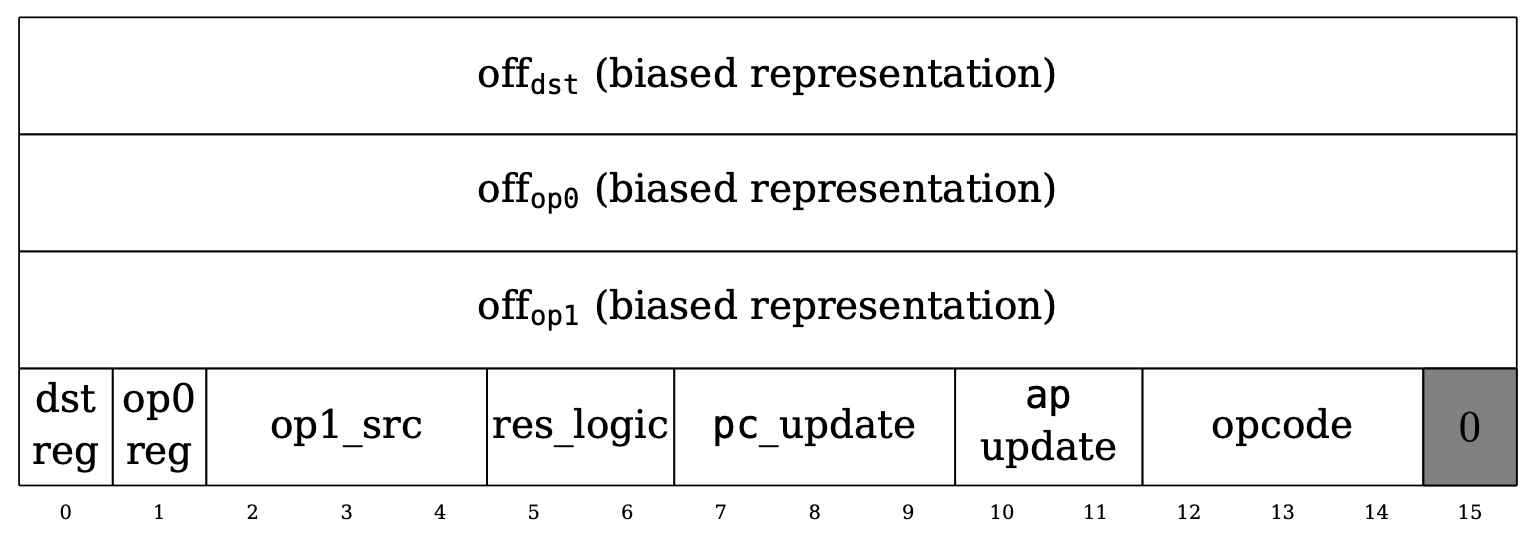

Figure 1: Cairo instruction (little-endian)

As the figure above from the Cairo paper shows, an instruction is 64 bits, where the first three 16-bit integers are signed offsets to the operands dst, op0, and op1. The next 15 bits are flags. The dst_reg and op0_reg 1-bit flags indicate whether to use the ap or the fp register as the base for the dst and op0 operands. The op1_src flag supports a wider range of base values for the op1 operand: op0, pc, fp, and ap. The res_logic flag indicates how to compute the res operand: op1, op0 + op1, or op0 * op1. The pc_update and ap_update flags show how to update the pc and ap registers after computing the operands. The opcode flag indicates whether this instruction belongs to a predefined opcode (e.g., CALL, RET, ASSERT_EQ) and also defines how the ap and fp registers should be updated.
For a more detailed explanation of the flags, please refer to Section 4.5 of the Cairo paper.
Finally, the last bit is fixed to 0, but as we will see in the next section, this design is modified in the current version of Cairo to support opcode extensions.

​
Opcodes and Opcode Extensions

In Cairo, an opcode refers to what the instruction should do. Cairo defines a set of common CPU operations as specific opcodes (e.g., ADD, MUL, JUMP, CALL), and the current version of Cairo also defines a new set of opcodes used to improve the performance of heavy computations such as Blake2s hashing and QM31 addition and multiplication. Since the 64-bit instruction structure is not flexible enough to support this extended set of opcodes, Cairo extends the instruction size to 72 bits and uses the last 9 bits as the opcode extension value.

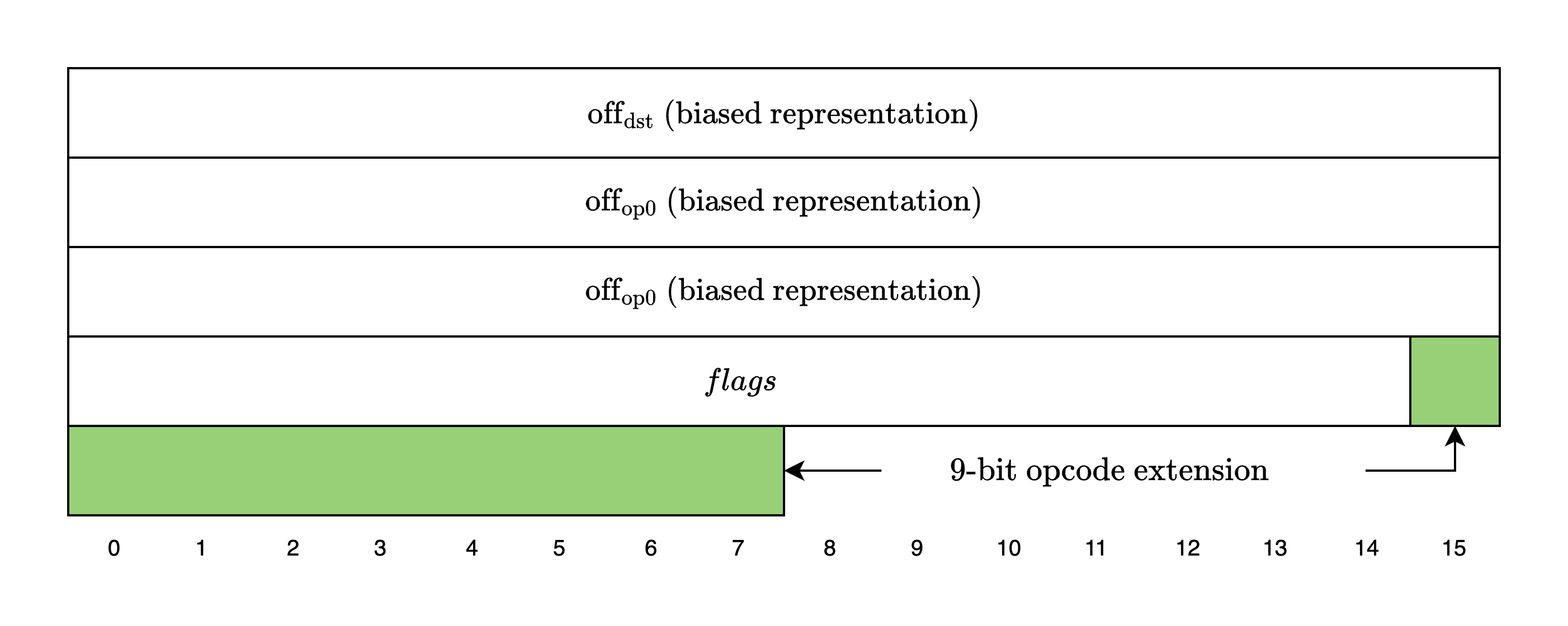

Figure 2: New instruction format with opcode extension

As of this commit, the following opcode extension values are supported:
  • 0: Stone (original opcodes)
  • 1: Blake
  • 2: BlakeFinalize
  • 3: QM31Operation
Even if an instruction does not belong to any predefined set of opcodes, it is considered a valid opcode as long as it adheres to the state-transition function defined in Section 4.5 of the Cairo paper. In S-two Cairo, this is referred to as a generic opcode.
